E Bike Akku Entnehmen Ohne Schlüssel — Step-by-Step Guide

If you’ve lost your e-bike battery key or the lock is jammed, you can still remove the battery safely using the right tools and technique. Most e-bike batteries use a mechanical latch or lock cylinder that can be bypassed with common household items—without damaging the battery or the bike. This guide covers the most reliable methods for frame-mounted, rear-rack, and downtube batteries, with clear steps and safety checks.

Identify Your Battery Mount Type Before You Start

Different e-bike brands lock their batteries in different ways. Knowing which system you’re dealing with saves time and reduces the risk of breaking anything.

• Frame-integrated batteries (e.g., Bosch, Shimano, Yamaha) – The battery slides into the downtube or seat tube and locks with a key-operated latch inside the frame.
• Rear-rack batteries (common on commuter and cargo bikes) – The battery sits on a rack behind the seat and locks to the rack with a latch at the bottom.
• Downtube or top-tube mounted batteries (older or budget models) – The battery is strapped or bolted to the outside of the frame with a keyed lock on the side.

Check your manual for the battery type and any specific override instructions. If you don’t have the manual, search online for your bike model plus “battery removal without key.” Many manufacturers publish service guides.

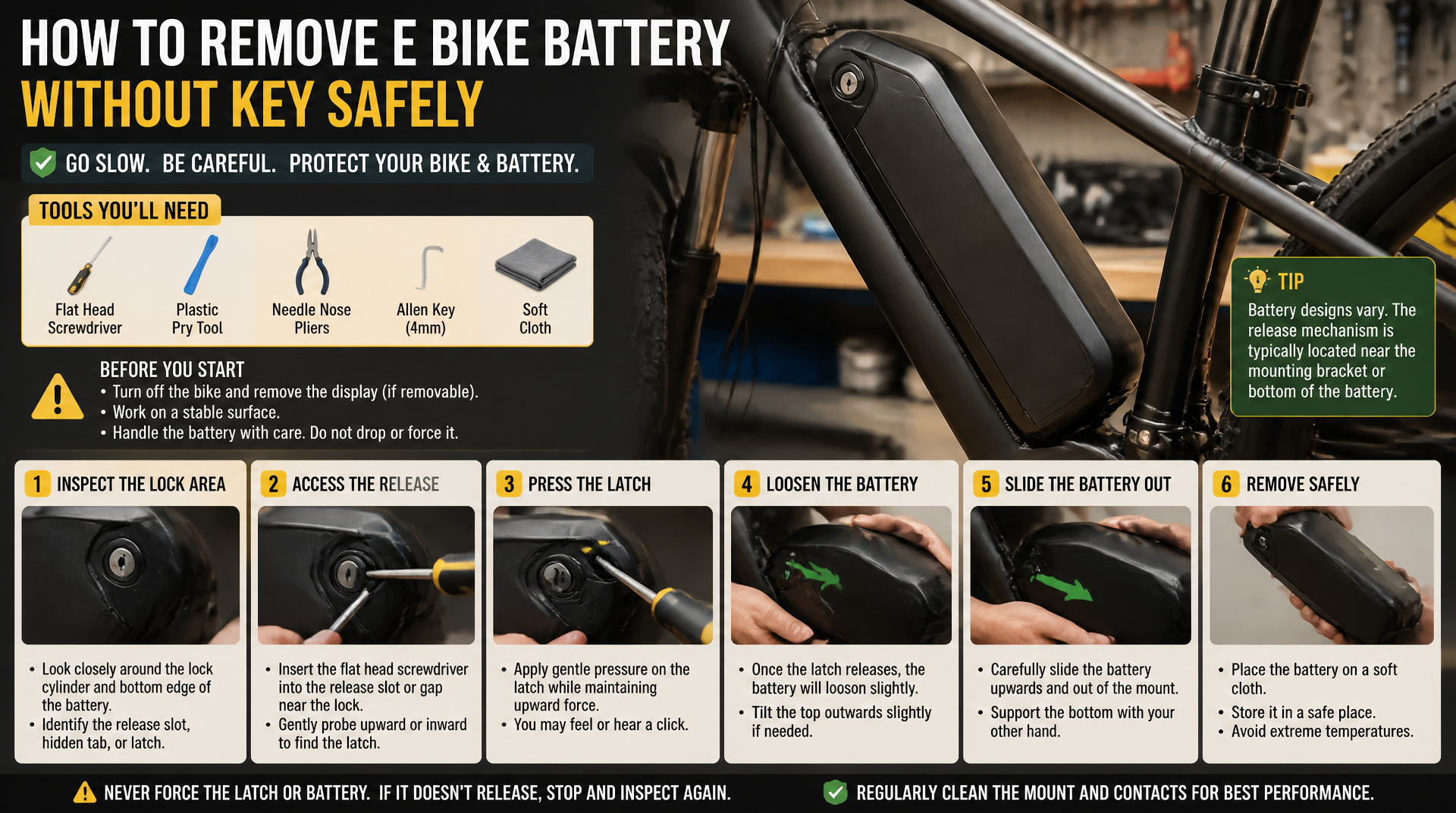

Frame-Integrated Battery: Using the Release Slot

This is the most common design on modern e-bikes. The battery is held in by a latch inside the frame that releases when you turn the key. Without the key, you need to access that latch directly.

Standard Release Slot Method

1. Locate the key slot and latch access hole. Look for a small slot or hole near the key cylinder. On many Bosch and Shimano batteries, there is a separate release opening (often marked with a tiny arrow or “release” icon) that lets you insert a tool to depress the latch.

2. Use a thin, rigid tool. A ¼-inch flathead screwdriver, a metal pick, or even a straightened paperclip works. Insert it into the release hole at a slight angle until you feel resistance.

3. Push the latch inward. Apply steady, gentle pressure. The latch should click, and the battery will pop out about ¼ inch. Pull the battery straight out.

4. If there is no separate release hole. Some frames require you to lift the battery slightly while pressing a release button. Use your tool to press the button through the key slot if the cylinder is missing. Warning: never force a tool into the key slot itself—you can damage the lock cylinder and make future keyed removal impossible.

Branch Check for Secondary Latches

If after step 3 the battery does not pop out, stop and re-examine the mount. Some frame-integrated batteries have a secondary locking tab that engages when the battery is fully seated. Look for a second small slot or a spring-loaded button on the side of the battery cradle. On a 2021 Shimano Steps battery, for example, you must press a separate release button on the underside of the downtube while pushing the latch. If you find a second release point, use the same tool to depress it before pulling.

Verification After Removal

Once you release the battery, slide it out slowly and inspect the metal contact pins on both the battery and the frame mount. They should be straight and free of corrosion. If any pins are bent, use needle-nose pliers to gently straighten them before reinserting the battery. A bent pin can cause intermittent power loss on your next ride.

Rear-Rack Battery: Locating the Override Release

Rear-rack batteries often have a simple lever or push-button latch that is separate from the key lock. The key usually locks the latch in place, but you can sometimes bypass it.

1. Look for a small spring-loaded pin or button. On many models (e.g., Racktime, TranzX), there is a ¼-inch diameter button on the underside of the rack that, when pressed, releases the battery even if the key is locked.

2. Press the button while pulling the battery upward. Use a screwdriver handle or your thumb. The battery should slide up and out.

3. If there is no release button. The key lock may directly engage a sliding pin. Open the battery case with a hex key (usually a 3 or 4 mm Allen) to disconnect the lock mechanism from inside. Warning: this voids warranty and should only be done when no other option works.

Downtube or Top-Tube Strap Battery: Adjusting the Latch

These batteries are often strapped or clamped to the frame with a simple latch, and the key only prevents the latch from being opened.

1. Examine the battery mount. Look for a sliding plastic tab or a release lever near the lock. If the key is missing, the lever may still move if you apply side pressure.

2. Use a zip tie or Velcro strap. Wrap it around the battery and the frame, then tighten it to shift the battery slightly. This can take pressure off the latch and allow you to slide it open.

3. If the lock is a simple pin. A small Allen wrench (2 mm) inserted into the pin hole can push the pin back. Rotate the wrench gently to disengage.

Example: The Panasonic downtube battery on older Pedego City Commuters uses a spring-loaded pin. A 2 mm hex key inserted 5 mm deep into the key slot (with the cylinder removed) will push the pin out.

When to Stop and Call a Shop

After trying the appropriate method for your battery type, if the battery still does not release or shows signs of resistance beyond gentle hand pressure, stop. Do not use a hammer, pliers to pry, or any impact tool. Forcing a stuck battery can crack the plastic housing, short the terminals, or damage the frame mount.

Clear threshold to escalate: If you cannot release the battery after 15 minutes of trying the correct method (including checking for secondary latches), or if any part of the lock mechanism or battery housing appears cracked, take the bike to a certified e-bike service center. Most shops can remove a stuck battery in under 15 minutes for a small fee. Attempting further DIY work at that point risks permanent damage and a potential fire hazard from a shorted lithium-ion pack.

Frequently Asked Questions

Can I remove the battery if the key is broken inside the lock?

Yes, in most cases. If the broken key fragment is not jammed too deep, use a strong magnet or a thin pair of needle-nose pliers to pull it out. Then proceed with the release slot method. If the fragment is stuck, you may need to extract the lock cylinder with a small screw extractor—consider taking it to a bike shop.

Will these methods work on all e-bike brands?

No. Some high-end models (e.g., Specialized Turbo with proprietary “Mission Control” battery) have electronic locks that cannot be bypassed without a dealer tool. Always check your owner’s manual first.

Is it safe to ride my e-bike after removing the battery this way?

If the battery was forced out rather than released normally, inspect the mounting brackets and contacts for damage. Loose contacts can cause intermittent power loss while riding. If you see bent pins or cracks in the plastic mount, replace the mount before riding.

What if I still can’t get the battery out?

Contact a certified e-bike service center. Forcing the battery can cause the internal wiring to short, leading to a fire risk. Most shops can remove a stuck battery in under 15 minutes for a small fee.
