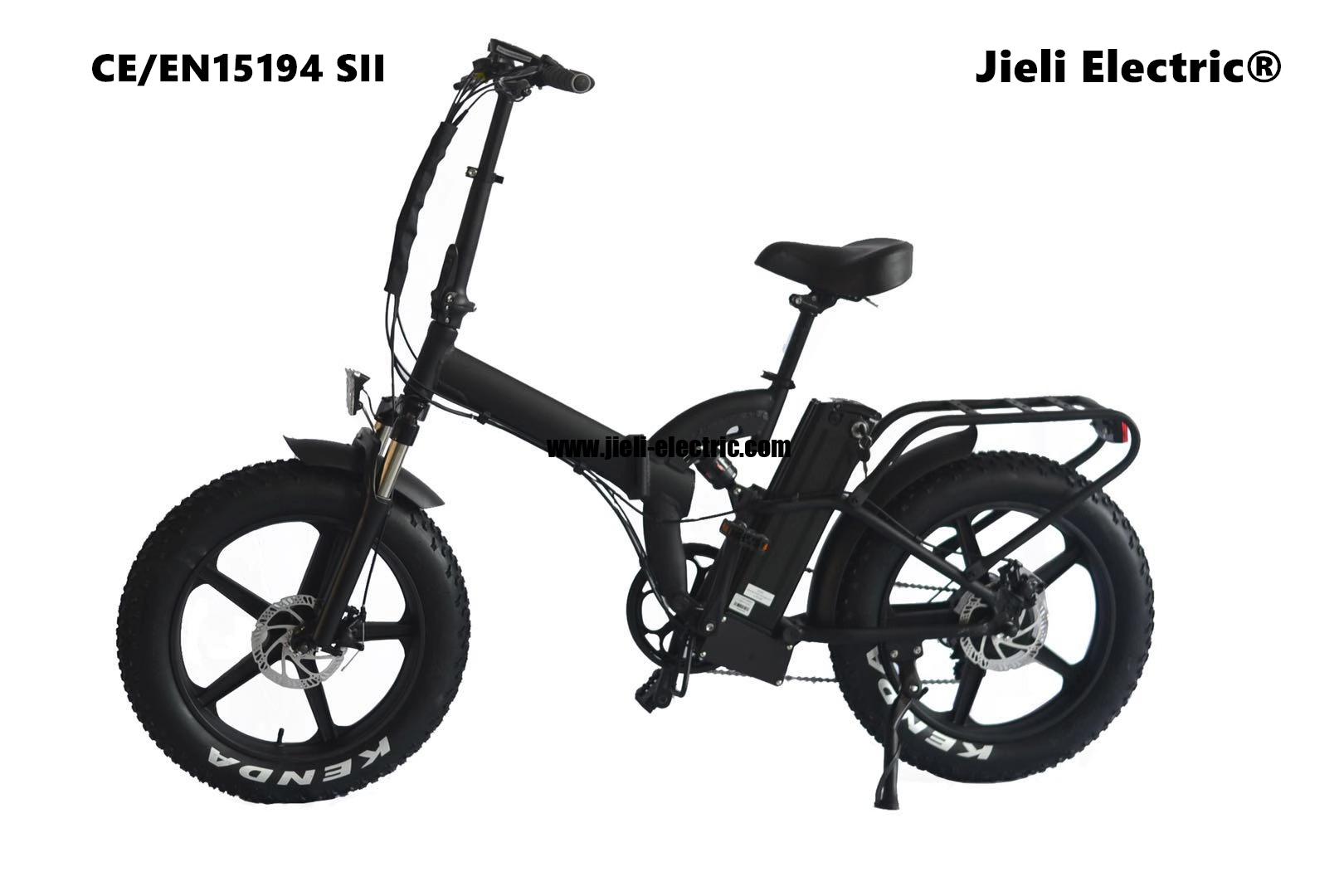

EN15194 Certificate
Model Name
TDN05Z-FAT
Mechanical Parts
Frame 6061 aluminum alloy
Fork dual sides aluminum alloy with suspension
Stem & Handle Bar aluminum alloy
Derailleur Shimano 7 speeds

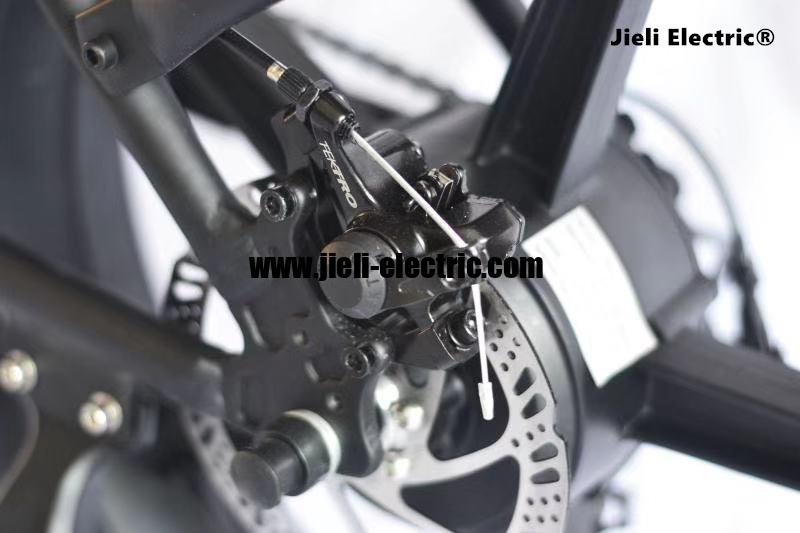

Brake System Tektro EL550
Rims Integrated
Tires Kenda fat 20inch*4.0
Saddle Ergonomic
Seat Post Aluminum alloy
Pedals Wellgo fold-able
Mudguards Aluminum alloy
Electric Parts
Battery 48V/15.6Ah
Motor 48V/250 Watts hub motor with magnesium wheel
Controller Kunteng

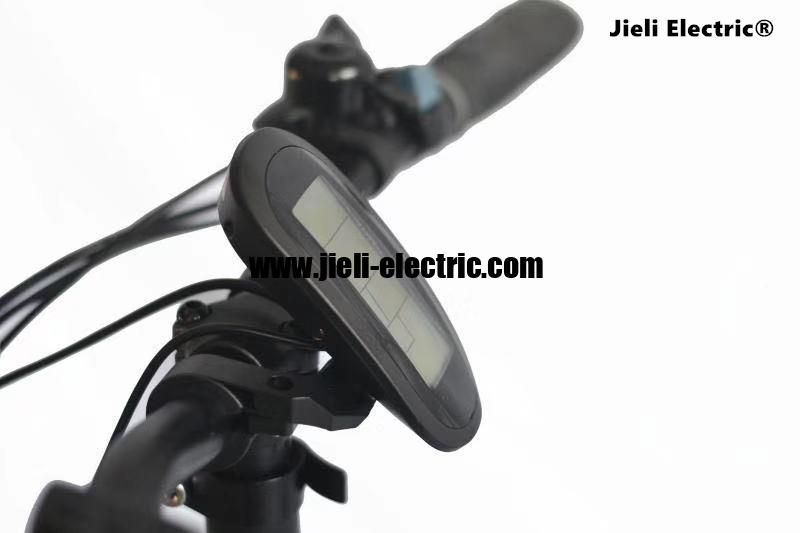

Display Kunteng LCD6
Light F/R LED
Data
Drive mode EU Paddle Assist-US Class 1/2/3
Max. Speed 35miles/h
Range/Charge 40 miles
Life Cycles >=500 times
Loading 120kgs
N.W/G.W 40/45 kg
Packaging Size 1500mm*30mm*870mm
Material 7-Layer Thick Protective Corrugated Paper Carton with Foam inside
Container Loading 200/40HQ
