E-Bike Error Code E07: Complete Symptoms, Causes, and Fix Guide
Error code E07 on most electric bikes means the controller has lost communication with a wired component — usually the throttle, display, or battery communication line. Start with a full power cycle: turn the battery off, wait 30 seconds, and power back on. This simple reset clears many E07 codes by re-establishing the initial handshake between controller and components.
If the code returns, the cause is almost always a loose or damaged connector. Most E07 issues are connection-related and fixable at home with basic tools. Work through the steps below in order before assuming a major component failure.
Quick Checks to Run First
Skip theory and start here:
- Power cycle the bike correctly. Remove the battery, hold the power button on the display for 10 seconds (if present), wait one full minute, then reconnect the battery and turn on. This drains residual capacitor charge that can hold a false fault state.
- Inspect every connector in the system. Look at the throttle plug, display cable, motor cable, and battery terminals. Any pin that is pushed back, corroded, or wet can block the 5V reference signal. On Juiced Bikes models, the JST-SM throttle connector is a known weak point — the female terminals spread over time, losing contact pressure.
- Check throttle position at startup. If the throttle is pressed or physically stuck when you power on, some controllers interpret the immediate voltage change as a sensor fault. Release the throttle fully and power on again.
- Verify battery voltage with a multimeter. A 36V system needs at least 30V at rest; a 48V system needs about 40V. Below those thresholds, the controller may refuse to communicate and show E07. Charge the battery fully and retest.
- Note where the code appears. On systems with a separate display, check if the display itself shows E07 or if the code appears only on a standalone LED indicator. This tells you whether the display is passing data correctly.
Most Common Causes in Order of Likelihood
E07 is a generic communication fault code, but the root cause follows a predictable pattern based on what you are most likely to bump, bend, or wet during normal riding.
Loose or Damaged Throttle Connector
The throttle uses a Hall-effect sensor that sends a 0.8–4.2V signal to the controller. A loose plug, a bent pin, or corrosion on a terminal makes the controller see erratic voltage readings. The controller sees an out-of-range signal and throws E07 to protect the system.
Concrete check: Wiggle the throttle cable near the connector while the bike is powered on. If the error flickers on and off, the connector is the problem. On many Chinese-made controllers (Bafang, KT, Lishui), the throttle connector uses JST-SM or Higo mini plugs where the female terminals can loosen after repeated disconnects. A gentle pinch with small pliers restores grip in about 30 seconds.
Faulty Throttle Unit With Internal Damage
If the connector looks clean and tight but E07 persists, the throttle itself may have an internal short or a broken wire inside the molded housing. Water ingress is common on commuter bikes parked outside — the Hall sensor board corrodes, creating a partial short that drops the signal voltage below the 0.8V threshold.
Test with evidence: Unplug the throttle completely and power on. If E07 turns into a different code, or if the bike runs normally with pedal assist but no throttle, the throttle unit is bad. With a multimeter, probe the throttle signal pin (usually yellow or white) against ground while twisting the grip. You should see 0.8V at rest and 4.2V at full twist. Steady 0V means the sensor is shorted to ground; steady 5V means the sensor is open. Either way, replace the throttle.
Battery Communication Failure on Mid-Drive Systems
Many mid-drive systems (Bosch Gen2/Gen3, Shimano Steps, Brose, Yamaha) use a CAN bus or proprietary serial protocol to talk between the battery BMS and the controller. A damaged battery contact, a blown BMS fuse, or a firmware mismatch can interrupt this conversation and trigger E07.
Evidence: E07 appears only after you seat the battery, and the display may not show accurate state of charge. On Bosch Gen2 systems, a bent pin in the battery mount is common — the plastic guide wears, allowing the battery to seat at a slight angle. Inspect the mount with a flashlight and straighten any bent pin carefully with a plastic pick. If you have access to a known-good battery from a compatible bike, swap it for 30 seconds to rule out the BMS circuit entirely.
Controller or Wiring Harness Damage
A chafed wire inside the frame, a corroded pin in the main harness, or a failed capacitor on the controller board can produce E07. This is less common but more labor-intensive.
Check: Run your fingers along the cable from the controller to each component, feeling for flat spots or cuts. With a multimeter in continuity mode, test the signal wire from the controller board pin to the throttle plug. Also check for stable 5V DC between the red and black wires on the throttle plug. If the 5V rail is missing or reads below 4.8V, the controller’s internal voltage regulator may be failing. A failing regulator often works cold but drops voltage as the controller heats up during a ride, which explains intermittent E07 after 10–15 minutes.
Display or Speed Sensor Involvement
Some brands assign E07 specifically to a missing speed sensor signal. If your bike uses a wheel magnet sensor, verify the magnet passes within 1–3 mm of the sensor tip and that the sensor housing is not cracked. A magnet knocked off-center by a pothole is a frequent cause on city commuters with rigid forks. A disconnected display on certain systems (Bafang BBSxx, some Tongsheng kits) can also trigger E07 because the display cable carries both power and data — a single bent pin in the Higo connector blocks communication even if the motor runs normally.

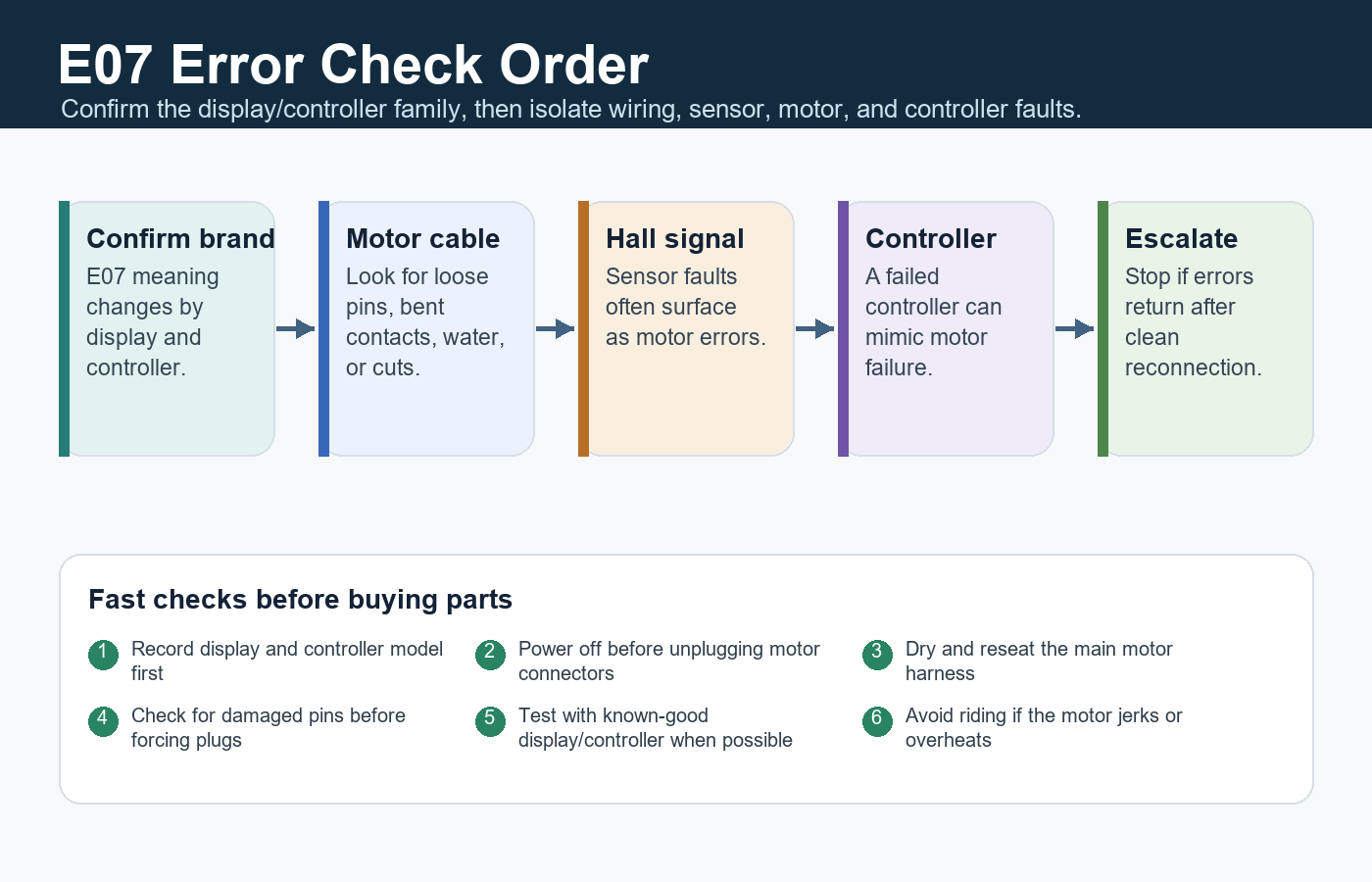

Ordered Quick Fixes for E07
Perform these steps in exact sequence. Stop once the error clears.
1. Reseat every connector you can reach. This includes battery, display, throttle, motor, and any auxiliary sensor plugs. Push each one firmly until you hear or feel a click. Do not skip the display connector — it carries data on most systems.
2. Clean all contacts with 90%+ isopropyl alcohol and a cotton swab. Pay attention to the female terminals inside JST and Higo plugs — alcohol wicks into the crimp area. Dry thoroughly with compressed air or 30 seconds of air drying before reconnecting.
3. Unplug the throttle completely and power on. If E07 disappears (or changes to a different error code), the throttle unit is at fault. Ride with pedal assist only until you install a replacement.
4. Test with a different battery if one is available. This instantly rules out the battery BMS or communication circuit. On proprietary systems, even a fully charged battery with a damaged communication pin will give E07.
5. Update the firmware using the manufacturer’s official app or dealer tool. Some controllers (especially Bafang and KT) have shipped with early firmware that misinterprets normal Hall-sensor noise as E07 on cold starts. A firmware update resolves this without hardware changes.
6. Replace the throttle if step 3 pointed to it. A generic compatible Hall-effect throttle costs $15–$30 and takes about 10 minutes to swap. Match the plug type — JST-SM and Higo are the most common.
7. Test with a known-good display from a friend or dealer. If E07 clears, the display or its cable is faulty. On Bafang systems, the display cable is often the first point of failure because it bends at the handlebar stem clamp every time you steer.
When to Stop Troubleshooting and Visit a Shop
Home fixes resolve about 70% of E07 cases. Stop immediately and get professional help when you see any of these signs:
- Burning smell or visible smoke — this indicates a shorted controller MOSFET, a fried motor phase wire, or a battery BMS failure. Disconnect the battery immediately and place the bike in a well-ventilated area.
- Water inside the motor housing or controller case. Drying requires full disassembly, corrosion inspection, and often replacement of seals and bearings. Opening a water-damaged motor without proper tools can introduce more contamination.
- All connections are clean, the throttle unplug test passed, and a battery swap did not clear it. If E07 returns every ride despite passing all basic checks, the controller likely has a failing internal component — commonly a blown 5V voltage regulator that drops its output under load. This is not user-serviceable without a schematic and soldering experience.
- The bike is under warranty. Opening the controller, cutting zip ties on the wiring harness, or removing motor side covers will void the warranty. Let the dealer handle the diagnosis.
Concrete stop threshold: You have completed steps 1 through 4 (power cycle, connector reseat, throttle unplug test, battery swap), and the error still appears. You have inspected visible wires and found no damage. Do not open the controller housing. At this point the issue is likely an internal controller fault — a shorted capacitor, fried voltage regulator, or damaged MOSFET. Even experienced builders often swap the controller rather than repair it at component level. A shop can test with a known-good controller in under 15 minutes. If you have spent 30 minutes on DIY diagnostics, call it and take it in.
FAQ
Can error E07 appear when the battery is low? Yes, a battery voltage below the controller’s minimum threshold can trigger communication faults. On a 36V system this is typically 30V; on a 48V system it is about 40V. Fully charge the battery and retest before troubleshooting anything else.
Will unplugging the throttle permanently fix E07? Only if the throttle itself is faulty. Unplugging it disables throttle assist but pedal assist often still works. Replace the throttle to restore full functionality.
Does E07 require a dealer reset tool? Not usually — most cases resolve with connector work and a power cycle. If the error persists after all basic checks, a dealer can run a diagnostic with brand-specific software, but this is rarely needed for a simple communication fault.
Can a damaged speed sensor cause E07? On some systems (especially Bafang M-series and certain hub-motor controllers), yes. The controller expects a speed sensor pulse within the first few seconds of rotation. If the sensor is broken, misaligned, or disconnected, the controller may interpret the missing signal as a communication failure and show E07. Check the magnet gap and sensor cable before replacing the controller.
Most E07 errors trace back to a loose connector or a worn throttle unit. Re-seating plugs and cleaning contacts resolves the problem in about seven out of ten cases. When those steps fail, systematic component swapping — throttle first, then battery, then display — pinpoints the fault without specialized tools. If the error reoccurs after all basic checks, the controller or internal wiring needs professional evaluation.
